1:1000 Star Trek Enterprise Discovery LED Fan Blade and Control Boards (Model kit is not included)
(See Demo Video Below)

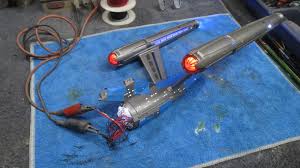

Add life to your 1:1000 Enterprise Discovery NCC-1701
This is our rendition of the original effect utilizing LED’s to simulate the rotating motors. A control board for the Navigation and Impulse Engine is also included.
1:1000 Star Trek Enterprise Discovery LED Fan Blade and Control Boards
All the connections to these boards are done by the supplied pre-connected wires coming out of the Bussard Boards, color coded for easy wiring. Control Board has 8 pin JST wired connector.
The supplied instructions also have a video link showing the process of how to install this kit into your Polar Lights model.
As always TenaControls uses commercial grade components in all our controls for reliability and longevity. Which is why we can offer a 5 Year Warranty for your peace of mind.
Included:
One (1) fully assembled Clock Wise Led Fan Effect Board
One (1) fully assembled Counter Clock Wise Led Fan Effect Board
One (1) fully assembled Navigation and Impulse Engine Board
Six (6) 1.8mm White LED’s
Two (2) 0402 SMD Navigation Green LED’s
Two (2) 0402 SMD Navigation Red LED’s
Two (2) 0402 SMD Navigation White LED’s
Two (2) 5mm Impulse Engine Red LED’s
Two (2) 5mm Fan Tail Blue LED’s
Two (2) 3mm Strobe White LED’s
Two (2) Chiller Grill LED Strips
White Led Strip Tape for internal Lighting of Windows
One (1) Momentary Switch
Resistors
Shrink tubing for some connections
Wiring Instructions
Best warranty in the business – 5 Year Warranty
Made in the USA
This board will operate from a 9 or 12 volt DC 1 ampere wall power adapter.
Item# STDSCV-A (model kit is not included) You will need wiring and soldering knowledge to install this kit properly into your model kit.
